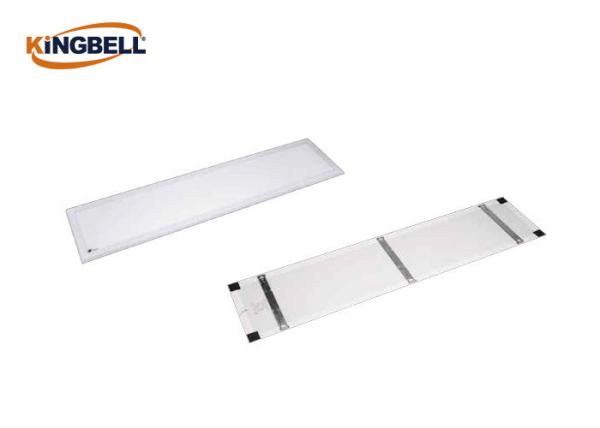

KB05PB Clean Room LED Light Fixtures Aluminum Alloy Color Temperature 6500K White

    Buy cheap KB05PB Clean Room LED Light Fixtures Aluminum Alloy Color Temperature 6500K White from wholesalers

    Buy cheap KB05PB Clean Room LED Light Fixtures Aluminum Alloy Color Temperature 6500K White from wholesalers
    • Buy cheap KB05PB Clean Room LED Light Fixtures Aluminum Alloy Color Temperature 6500K White from wholesalers
    • Buy cheap KB05PB Clean Room LED Light Fixtures Aluminum Alloy Color Temperature 6500K White from wholesalers
    • Buy cheap KB05PB Clean Room LED Light Fixtures Aluminum Alloy Color Temperature 6500K White from wholesalers

    KB05PB Clean Room LED Light Fixtures Aluminum Alloy Color Temperature 6500K White

    Ask Lasest Price
    Brand Name : Kingbell
    Model Number : KB05PB
    Certification : CE,GS
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000 pieces per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    KB05PB Clean Room LED Light Fixtures Aluminum Alloy Color Temperature 6500K White

    KB05PB Clean Room LED Light Fixtures Aluminum Alloy Color Temperature 6500K White


    Frame 6063 aluminum straight edge / beveled edge, stainless steel straight edge optional, bracket fixed installation, beautiful appearance.
    All models can be retrofitted with an emergency time of 90 minutes / 180 minutes.


    Specifications

    Model

    Rated
    Power

    Rated
    Voltage

    Power
    Factor

    Luminous
    Flux

    CRI

    Color
    Temperature

    Size

    Beads
    Type

    KB-Y20/SD05P20w220-240v>0.951600lm≥803000-6500K600L*300W(mm)4014
    KB-Y42/SD05P42w220-240v>0.953300lm≥803000-6500K600L*600W(mm)4014
    KB-Y32/SD05P32w220-240v>0.952600lm≥803000-6500K900L*300W(mm)4014
    KB-Y42/SD05P42w220-240v>0.953300lm≥803000-6500K1200L*300W(mm)4014


    Features

    • Beautiful appearance, not easy to accumulate dust. Ultra-thin design to improve space utilization.
    • The internationally renowned original packaged LED chip has high light efficiency and low light decay.
    • High-efficiency heat-conducting aluminum substrate, high-quality heat-dissipating frame, reasonable structure design, ensuring stable light source performance and long service life.
    • Side light guiding technology, soft light, anti-glare, effectively prevent visual fatigue and damage.
    • Products meet the requirements of 3C, CE, GS and other certification standards.
    • Strict implementation of photobiosafety standards, no blue light hazard.


    Installation Notes

    KB05PB Clean Room LED Light Fixtures Aluminum Alloy Color Temperature 6500K White


    Installation diagram


    • According to the position shown in the figure, the power supply opening is made at the position corresponding to the installation of the ceiling and the lamp.
    • Place the mounting bracket on the mounting template. After fixing the template with a magnet or by hand at the position where the ceiling is installed, use the flat head self-tapping screws to lock the bracket and remove the template.
    • Pass the lamp power cord socket through the pre-opened outlet hole.
    • Align the snap hole on the back of the luminaire with the bracket buckle and push it into place. You can hear the click.
    • After confirming that the lamp is tightly locked, connect the connecting wire on the lamp through the hole and the DC output wire on the driving power supply, and the power is on.
    • If you need to disassemble, use a flat screwdriver to gently insert the lamp and the ceiling of the ceiling, and use a little force to open it.

    Our Service


    • If you are building a new hospital, we can offer your solutions of OT and medical gas pipeline system;
    • Our sales team give you the quotation and answer your any questions and doubts about products;
    • You are welcome to visit our factory at any time;
    • We will offer you the solutions of quality problems within 24hours;
    • Our after-sales service:
      1. Engineer goes to your hospital and provide on site customer training and guide,
      2. We send the free parts to you by courier and give you technical guidance via online video,
      3. We support you free training of products.
      Warranty: 1-2years due to different products, and lifetime maintaining.
